- Place of Origin:CN;GUA
- Nominal Voltage:9V
- Brand Name:Eunicell, Neutral, OEM
- Size:Prismatic
- Nominal Capacity:1200mAh
- Battery Type:LiMnO2
- Model Number:ER9V CR9V
- Model name:ER9V lithium battery
- Norminal voltage:9V
- Shape:square
- Weight:31g approx
- Nominal Voltage:9V
- Size:17.0*26.0*50mm

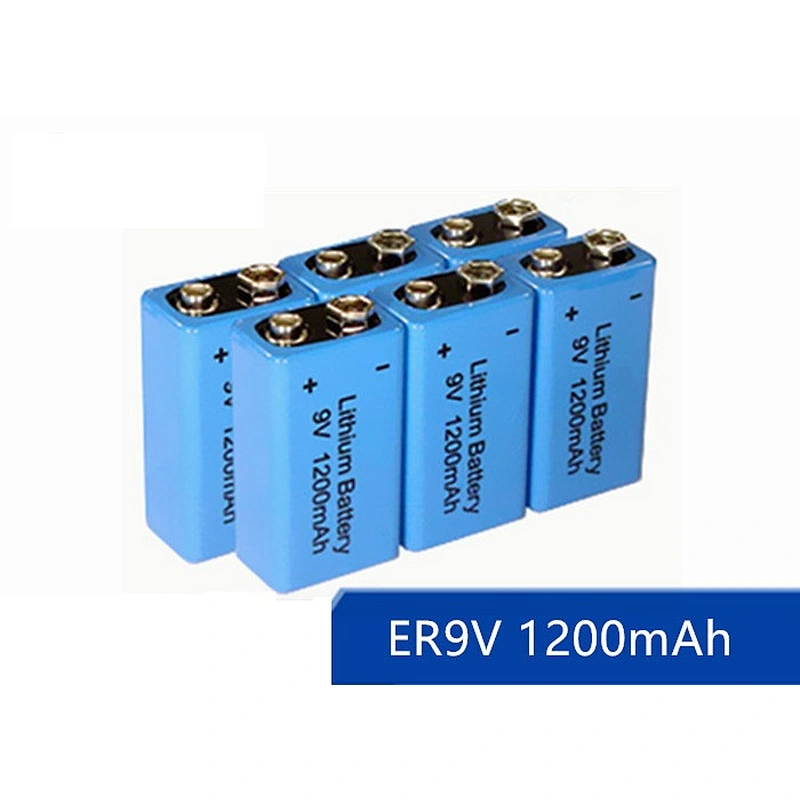

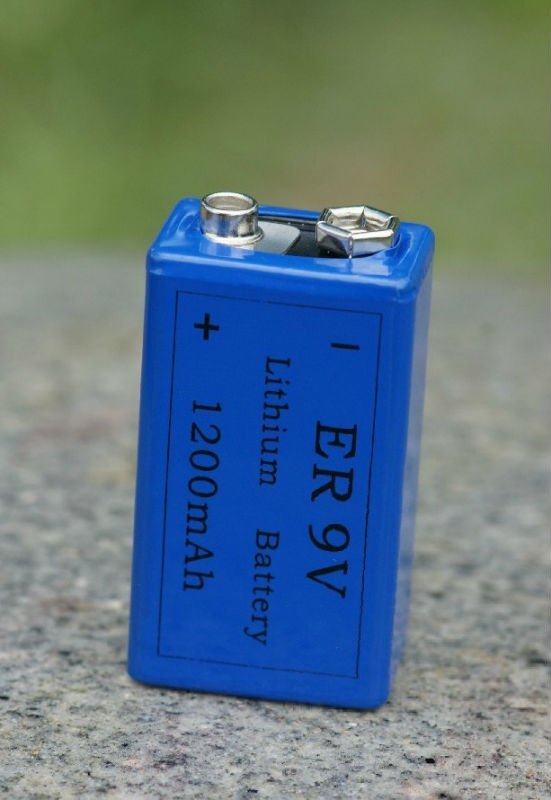

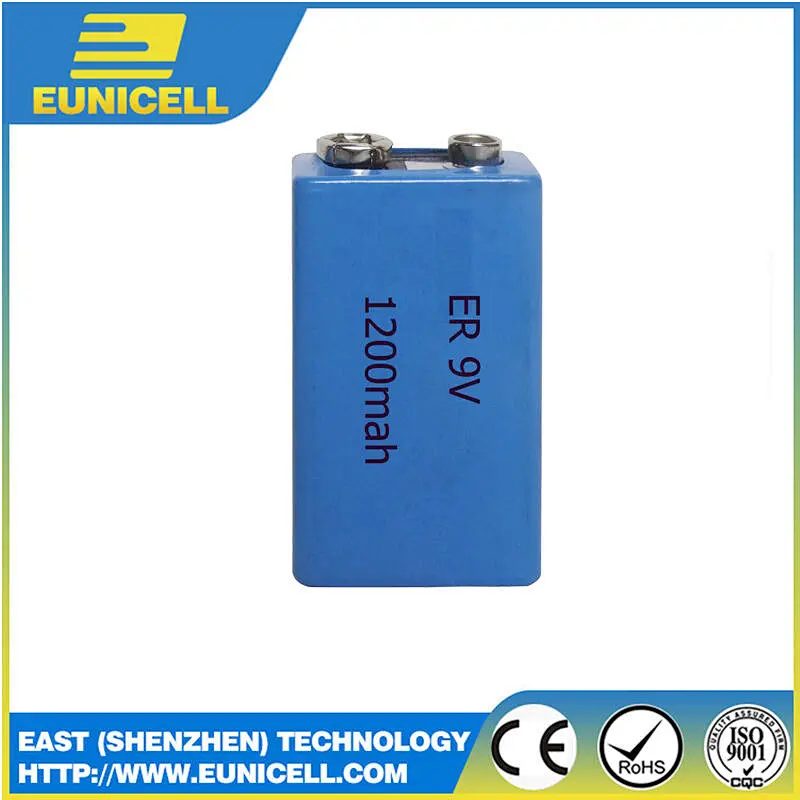

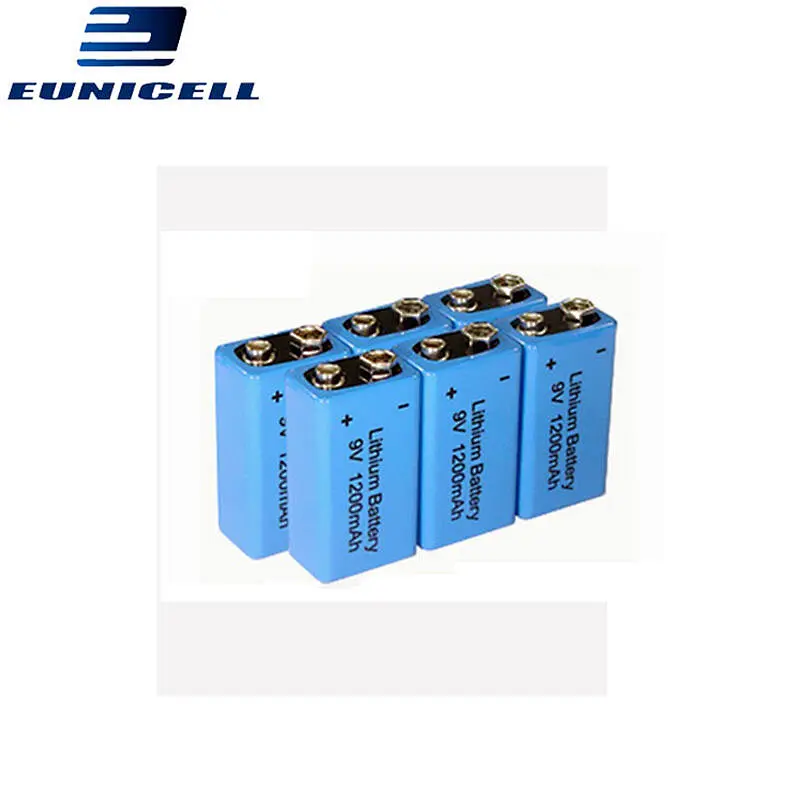

ER9V EUNICELL lithium battery
Product Description
1.Norminal vlotage: 9V
2.Norminal capacity: 1200mAh
3.Max.constant current:10.8v
4.Diameter:17.0*26.0*50mm
5.Used: utility meters,security systems,
CMOS memory and RTC backup
| Model | Rated voltage | Nominal Capacity | Working Current(mA) | Dimensions(mm) | Weight(g) | |||
| (V) | (mAh) | Standard current | Continues Current | Pluse Current | Diameter*Height | |||
| High Capacity | ||||||||
| ER10280 | 3.6V | 450mAh | 1mA | 10mA | 30mA | 10.5mm*28mm | 4g | |
| ER13150 | 3.6V | 450mAh | 1mA | 10mA | 30mA | 13.5mm*15.5mm | 6g | |
| ER10450 | AAA | 3.6V | 750mAh | 1mA | 25mA | 60mA | 10.4mm*45.3mm | 9g |
| ER14250 | 1/2AA | 3.6V | 1200mAh | 1mA | 20mA | 45mA | 14.5mm*25.2mm | 10g |
| ER14335 | 2/3AA | 3.6V | 1600mAh | 1mA | 75mA | 150mA | 14.5mm*33.5mm | 12g |
| ER14505 | AA | 3.6V | 2400mAh | 2mA | 100mA | 200mA | 14.5mm*50.5mm | 19g |
| ER17335 | 2/3A | 3.6V | 2000mAh | 1mA | 100mA | 200mA | 17.0mm*33.5mm | 18g |
| ER17505 | A | 3.6V | 3500mAh | 2mA | 120mA | 200mA | 17.0mm*50.5mm | 24g |
| ER18505 | A | 3.6V | 3800mAh | 3mA | 120mA | 200mA | 18.5mm*50.5mm | 28g |
| ER26500 | C | 3.6V | 8500mAh | 4mA | 130mA | 300mA | 26.2mm*50mm | 52g |
| ER34615 | D | 3.6V | 19000mAh | 5mA | 200mA | 400mA | 32.9mm*61.5mm | 100g |
| ER341245 | DD | 3.6V | 35000mAh | 10mA | 400mA | 500mA | 32.9mm*124.5mm | 195g |
| ER9V | 9.0V | 1200mAh | 1.5mA | 40mA | 100mA | 17.0*26.0*50 | 31g | |
Modle | Norminal voltage(V) | Norminal capacity(mAh) | Current(mA) | Volume (mm) | weight(g) | ||
| standard current | constand current | Pulse current | |||||
ER10280 | 3.6V | 450mAh | 1mA | 40mA | 100mA | 10.5mm*28mm | 4g |
ER13150 | 3.6V | 500mAh | 1mA | 10mA | 45mA | 13.5mm*15.5mm | 6g |
ER10450 | 3.6V | 750mAh | 1mA | 15mA | 50mA | 10.4mm*45.3mm | 9g |
ER14250 | 3.6V | 1200mAh | 1mA | 33mA | 100mA | 14.5mm*25.2mm | 10g |
ER14335 | 3.6V | 1600mAh | 1mA | 60mA | 150mA | 14.5mm*33.5mm | 12g |
ER14505 | 3.6V | 2400mAh | 2mA | 100mA | 200mA | 14.5mm*50.5mm | 19g |
ER17335 | 3.6V | 2000mAh | 1mA | 50mA | 200mA | 17.0mm*33.5mm | 18g |
ER17505 | 3.6V | 3500mAh | 2mA | 100mA | 200mA | 17.0mm*50.5mm | 24g |
ER18505 | 3.6V | 3800mAh | 3mA | 100mA | 200mA | 18.5mm*50.5mm | 28g |
ER26500 | 3.6V | 8500mAh | 4mA | 200mA | 400mA | 26.2mm*50mm | 52g |
ER34615 | 3.6V | 19000mAh | 5mA | 230mA | 500mA | 32.9mm*61.5mm | 100g |
ER341245 | 3.6V | 35000mAh | 10mA | 400mA | 500mA | 32.9mm*124.5mm | 195g |
ER9V | 9.0V | 1200mAh | 1.5mA | 40mA | 100mA | 17.0*26.0*50 | 31g |
