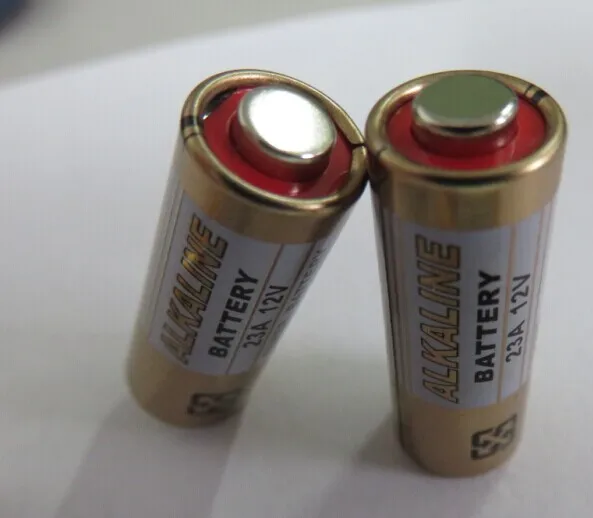

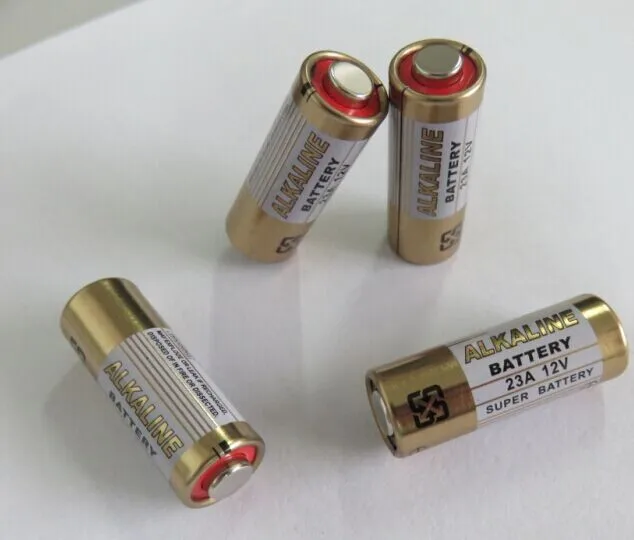

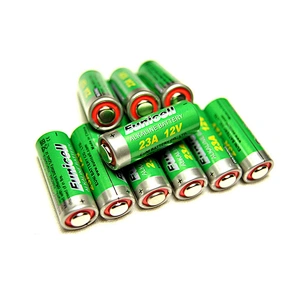

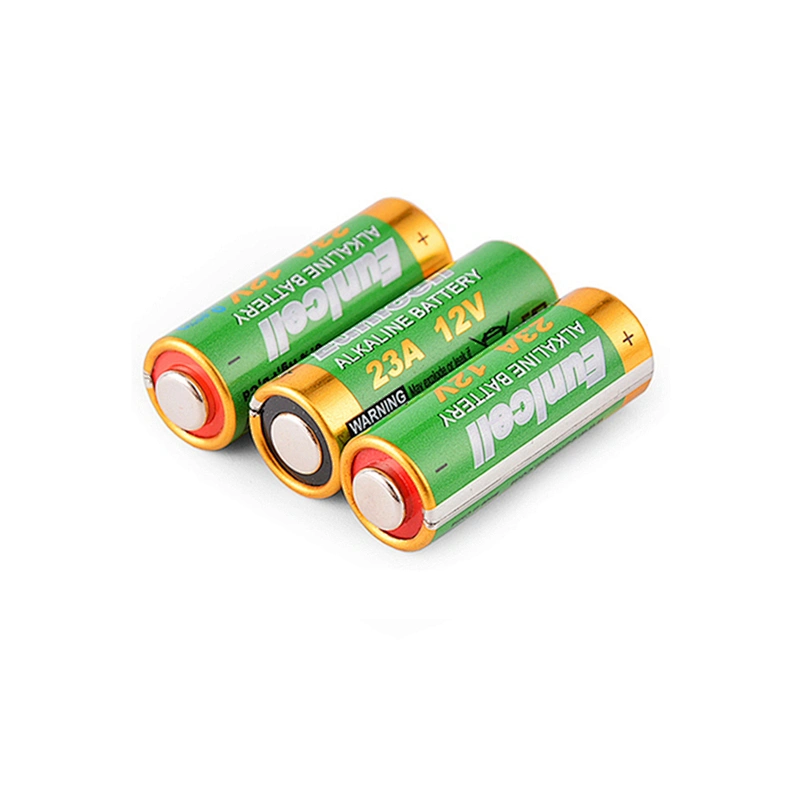

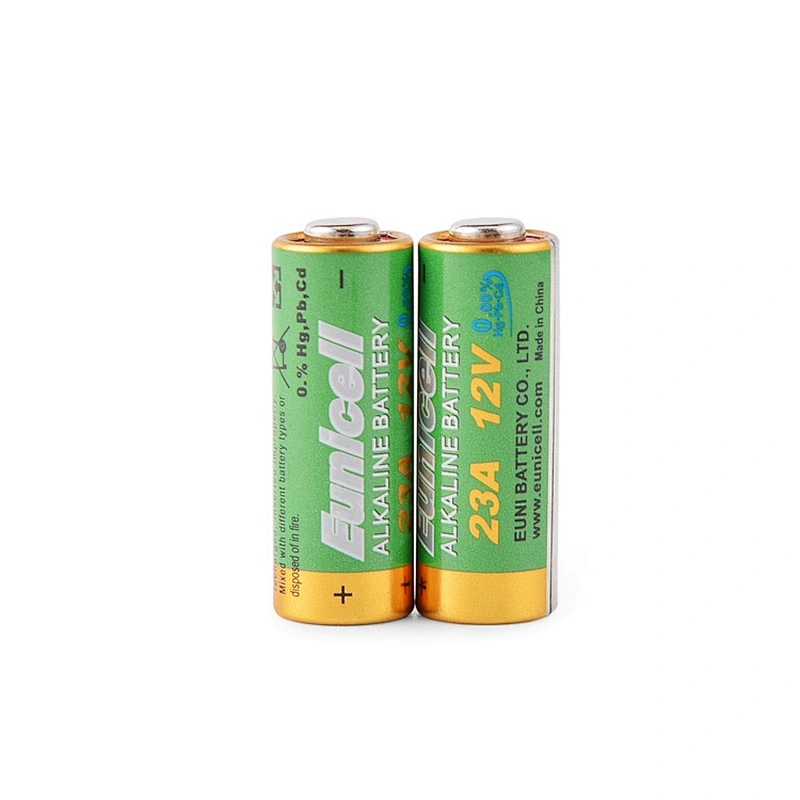

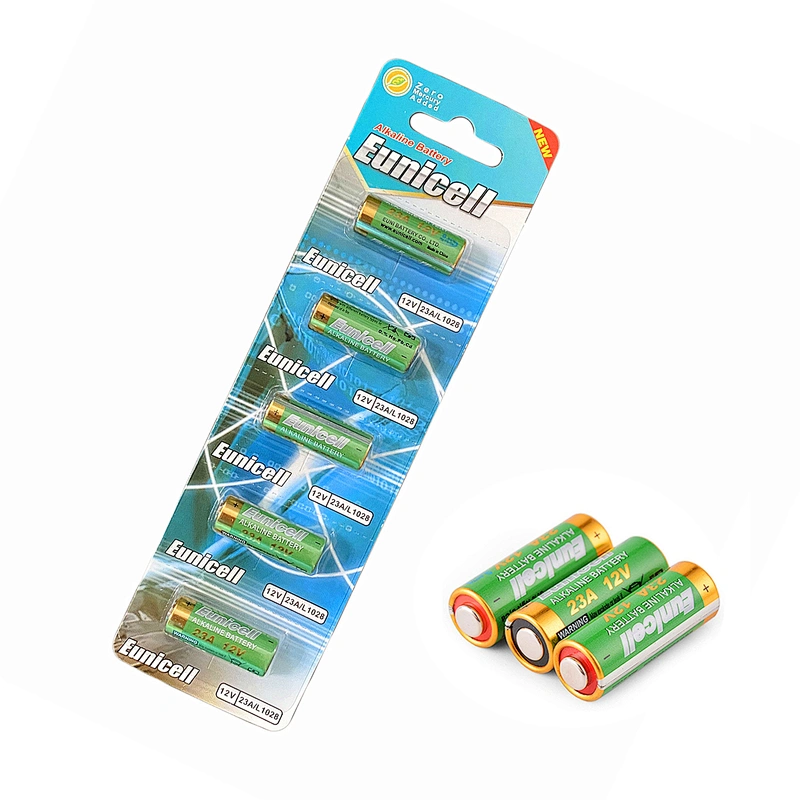

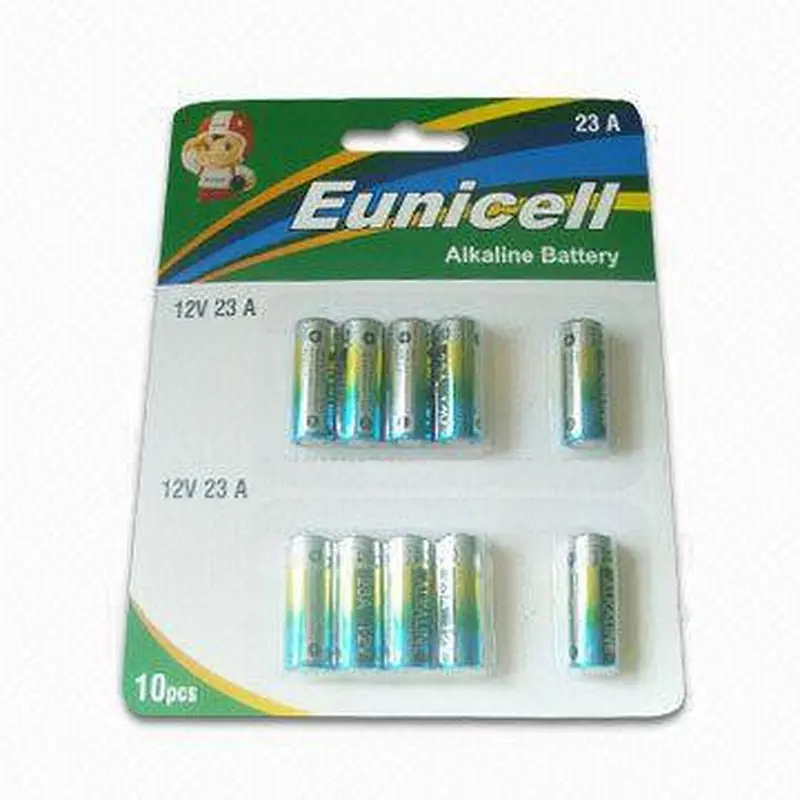

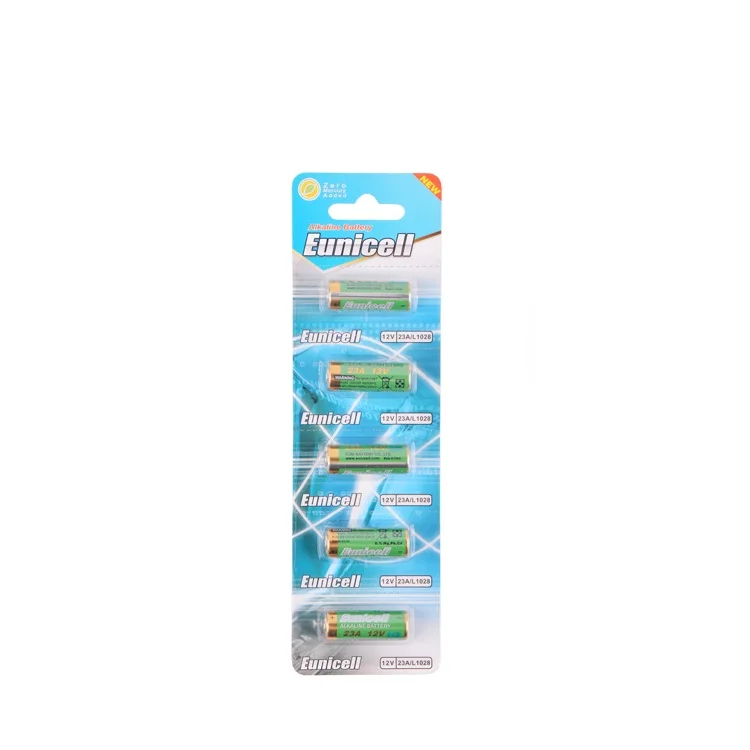

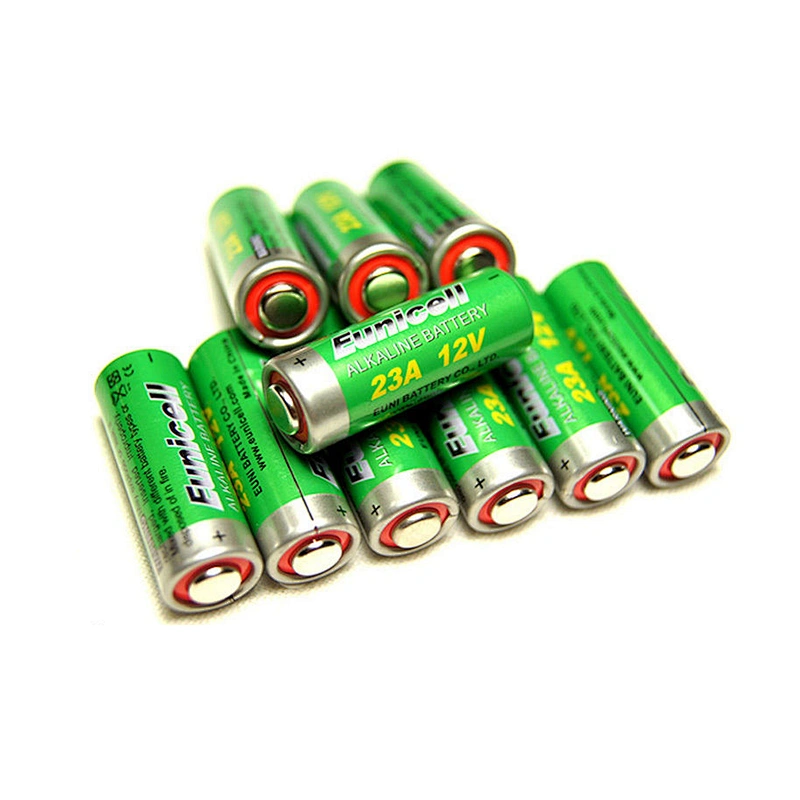

Eunicell 23A 12v alkaline battery door bell wireless

• Battery Type:Zn/MnO2
• Size:Prismatic
• Rechargeable:No
• Diameter:10.0mm
• Height:28.5mm
• certificate:CE/ROHS/SGS/TUV
• Experienxce:more than 10 years
• battery:23a rechargeable battery
• Application:Toys
• Application:Power Tools
• Application:Home Appliances
• Application:Consumer Electronics
• Shape:Button
• Place of Origin:CN;GUA
• Battery Size:standard
• Brand Name:neutral or eunicell or oem
• Certification:CE/ROHS/MSDS/UN38.3
• Model Number:A23 LR23 2LRV08 L1028 23AE 23A MS21 MN21
• Weight:7.1g

23A 12v battery  12V Alkaline A23 Battery datesheet as below:

1.Other name for the same type

                  L1028    23L    VR22

2.Chemical System

    Alkaline Zinc—Manganese battery    (+) Zn|KOH|MnO2(-)

3.Nominal Voltage: 12V

4.Average Weight: 7.1 g

5.Nominal Capacity: 55mAh

  (continuous discharge at 20±2°C under 0.10mA discharge current to 7.2V voltage)

6.Appearance:Metal Can

7.Electrical Characteristics:

7.1 Off—load Voltage:

     New Battery≥12.10V

     After 12 Months (Room Temp.)≥12.00V

7.2 Discharge Time(continuous discharge at 20±2°C under 20KΩ discharge load to 7.2V voltage)

      New Battery≥80hours

       After 12 Months (Room Temp.)≥72hours

7.3 Over—discharge Characteristic

       Condition: 20KΩcontinuous discharge at 20±2°C&65±20%R.H.

       Period: 48hours

  Characteristic: No deformation is over 0.20mm of the nominal dimension,

                         and no visual electrolyte leakage.
